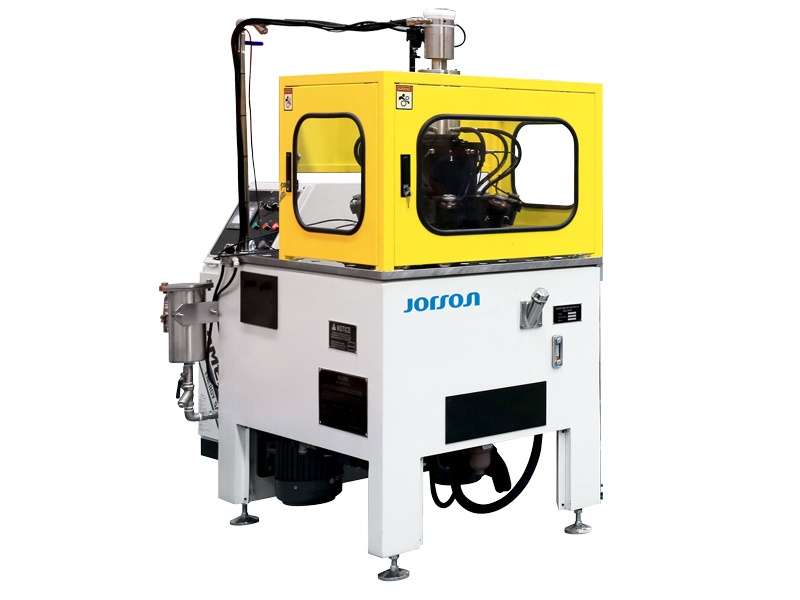

The high speed lining machine is suitable for water-based or oil-based lining compound (sealant), whose solid content is greater than 55%. It features 3-10 rotary compound injection guns and the production capacity is 300-2000 ends/min, appropriate for processing aluminum caps or tinplate caps of Ø 50-153mm. The lining machine delivers easy operations and ergonomic benefits.
1. The injection time of each gun can be adjusted independently on HMI panel
2. The injection gun can be freely adjusted in horizontal or vertical direction
3. When the machine runs, the chucks will not directly contact the can caps to reduce the noise.
4. Rolling head speed and the whole system speed can be adjusted independently on HMI panel.
|Model|| || || || |
|Number of Injection Guns||3||4||6||8||10|
|Production Capacity (ends/min)||300~500||500~1000||900~1500||1500~2000||2000~2500|
|Compound Weight Adjustment||Direct adjustment on touchscreen or injection gun without machine shut down|
